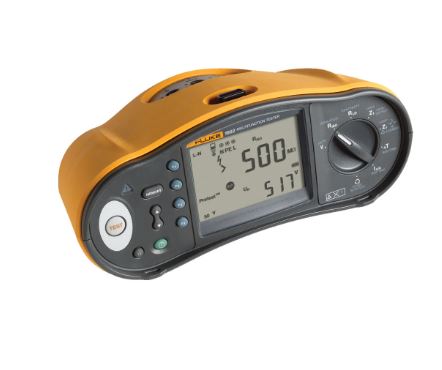

Fluke 1662 Multifunction Installation Tester
- Brand: Fluke
- Model: Fluke 1662
- Range: 500 V
- Input impedance: 360 kΩ
- Battery size, quantity: Type AA, 6 ea.
- Safety: Complies with EN/IEC 61010-1 and EN/IEC 61010-2-034
IN-Stock – FREE Shipping in UAE – Door to Door Delivery to KSA, Oman & Qatar
Contact us today and get Discounted prices on Bulk Orders
 |
 |
Product Description
The Fluke 1662 multifunction installation tester is used to verify the safety of electrical installations in domestic, commercial and industrial applications. The 1662 quickly and efficiently ensures that fixed wiring is correctly installed to meet the requirements of IEC 60364 and all relevant local standards, thus protecting workers as well as appliances that are connected to the system under test.
The Fluke 1662 has a wide range of measurement functions including voltage TRMS (AC and DC) and frequency, wiring polarity checker (detects broken PE and N wires), insulation resistance, continuity and resistance, measurement of motor windings with continuity test, loop and line resistance, prospective earth fault current (PEFC/IK), prospective short-circuit current (PSC/IK), RCD trip time, RCD trip current (ramp test), measurement of trip time and current for RCD type A and AC in one test, RCD variable test current, automatic RCD test sequence, and phase sequence test. This provides users all the testing power needed for basic installation testing.
Gulf Safety Supplies is a premier supplier of Fluke Installation Tester in Dubai UAE. As a leading supplier, we pride ourselves on offering the best price for Fluke 1662 in Dubai UAE, Saudi Arabia KSA, Oman, Qatar, Bahrain, Kuwait, Iraq, Egypt, Congo, Ghana, Nigeria, Tanzania, and Uganda. We have stock available, contact us today and get huge discounts on Bulk order.
Features of Fluke 1662 Multifunction Testers
- Measures RCD switching time and tripping level (ramp test)
- Measures trip time and current for RCD type A & AC in one test
- Measures RCD variable current
- Provides automatic RCD test sequence
- Includes Z-max memory for loop tests to support easy evaluation of the highest loop test value
- Provides unique zero adapter for fast, reliable and accurate test lead and mains cord compensation
- Includes a phase sequence indicator
Fluke 1662 Supplier in Dubai UAE
Best Price Guaranteed – Available In-Stock – Door to Door Delivery to UAE, KSA, Oman & Qatar
What's in the box:
- Installation Tester
- 6 x “AA” Battery
- Zero Adapter
- Heavy Duty Mains Cord
- Hard Carrying Case
- Padded Carrying and Waist Strap
- Remote Control Probe and Lead
- Quick Reference Guide
- Standard Test Lead Set
- User’s Manual on CD-ROM
Measurement capability
- AC/DC voltage measurement
- Continuity measurement of protective conductors with audible indicator
- Insulation resistance measurement up to 1 GΩ
- Loop impedance (Zloop) and line impedance (Zline) measurement
- Prospective short-circuit current (PSC) / fault current calculation
- RCD (Residual Current Device) trip time and trip current measurement
- Earth ground loop impedance measurement
- Frequency measurement
- Polarity check
- Phase sequence indication (3-wire)
Applications
Testing electrical installations in residential, commercial, and industrial environments
Verifying continuity of protective and bonding conductors
Measuring insulation resistance between conductors
Performing loop and line impedance tests
Testing RCD (Residual Current Devices) for trip time and trip current
Checking earth ground loop impedance
Verifying polarity of wires and connections
Conducting voltage and frequency measurements
Ensuring compliance with IEC/HD 60364 and local safety standards
Troubleshooting wiring and installation faults during commissioning or maintenance
Fluke 1662 Supplier in Dubai UAE
Gulf Safety Supplies is leading supplier of Fluke Digital Multimeter, Fluke Clamp Meter at Best Prices in Dubai UAE
Stock Available for FLUKE 945, Fluke TL75, FLUKE 375, FLUKE 376FC & Fluke Electronics FLK-1662
Fluke 1662 Specifications
| AC and DC Voltage Measurement TRMS | |
| Range | 500V |
| Resolution | 0.1V |
| Input Impedance | 3.3MΩ |
| Overload Protection | 660V rms |
| Continuity testing (RLO) | |
| Range (Autoranging) | 20/200/2000Ω |
| Resolution | 0.01/0.1/1Ω |
| Open Circuit Voltage | >4V |
| General Specifications | |
| Power Supply | 6 x “AA” Battery |
| Sealing | IP 40 |
| Safety | Complies with EN61010-1 Ed 2.0 (2001-02), UL61010 ANSI/ISA –s82.02.01 2000 and CAN/CSA c22.2 No. 1010 |
| Overvoltage | CAT III 500V, CAT IV 300V |
| Performance | EC/EN61557-1 to IEC/EN61557-7 and IEC/EN61557-10 |
| Dimensions | 10 x 25 x 12.5cm |
| Weight | With Batteries: 1.3kg |
Buy Fluke 1662 at Best Prices in Dubai UAE
Fluke Supplier in Dubai UAE at Best Prices
Stock Available for Fluke Clamp Meter, Fluke Multimeter & Fluke Pressure Calibrators
Fast Shipping - Door to Door Delivery
Buy Fluke 1662 at Best Prices in Dubai UAE
Best Price Guaranteed – Available In-Stock – Door to Door Delivery
FREE Shipping in UAE – Bulk Discounts are available
Fluke 1662 Resources
| Fluke 1662 Technical Datasheet: |  |
| Fluke 1662 User Instructions: | |
Note: Package contains Fluke 1662 Multifunction Installation Tester. Please contact us if you are unable to find what you are looking for.
