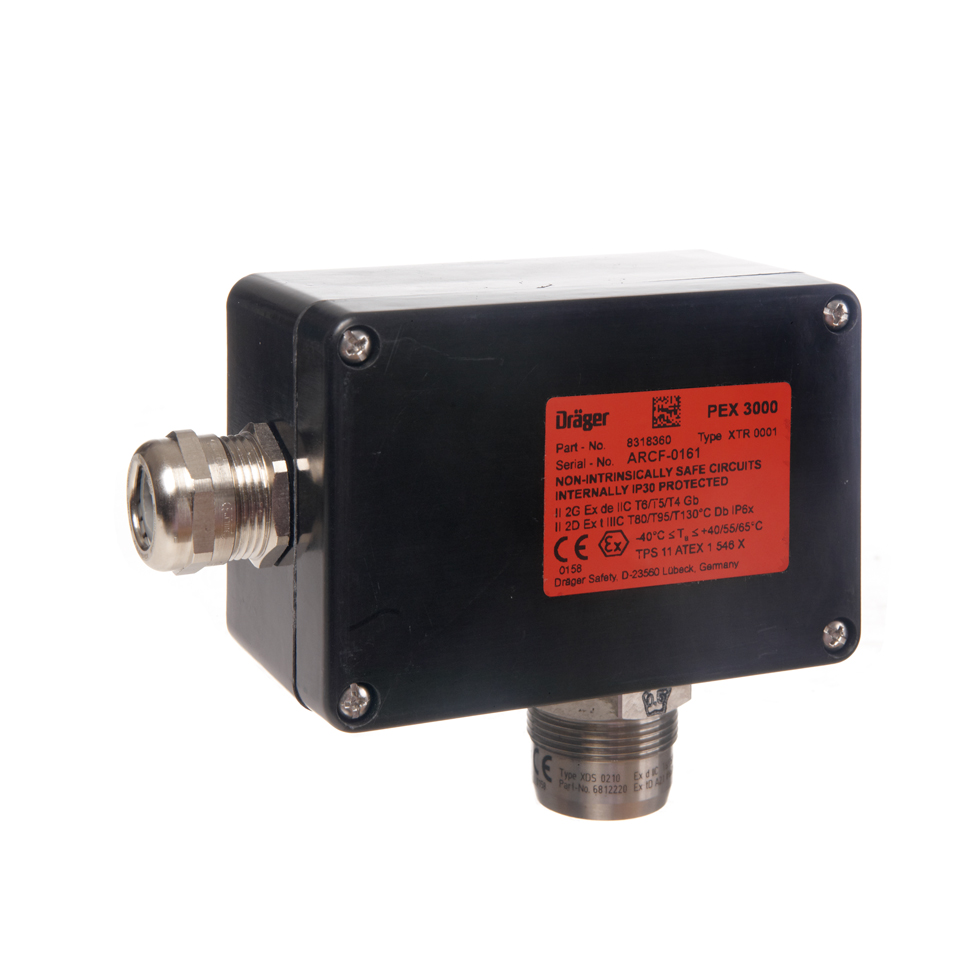

Drager 8318360 PEX 3000, Type XTR 0001 Fixed Gas Transmitter
- Brand: Drager
- Part number: 8318360
- Product Type: Fixed Flammable Gas Transmitter
- Measuring Principle: Catalytic Bead Sensor
- Measuring Range: 0–100% LEL (nominal order variant; technical data specifies 0–99% LEL)
- Output Signal: 4–20 mA
- Power Supply: 12–30 V DC (nominally 24 V DC)
- Housing Material: Glass Fibre Reinforced Polyester (GFRP)
- Degree of Protection: IP66
IN-Stock – FREE Shipping in UAE – Door to Door Delivery to KSA, Oman & Qatar
Contact us today and get Discounted prices on Bulk Orders
 |
 |
Product Description
Drager PEX 3000 Type XTR 0001 (8318360) is a fixed gas transmitter designed for continuous monitoring of flammable gases and vapours in ambient air. It uses catalytic bead sensor technology to detect gas concentrations below the lower explosive limit (LEL) and converts the measured concentration into a standard 4–20 mA signal for connection to compatible gas detection controllers and monitoring systems.
The XTR 0001 is the 100% LEL order variant and is supplied with a sensor in a medium-sized housing. Dräger’s technical product information specifies a measuring range of 0–99% LEL for this configuration. The transmitter operates on a 12–30 V DC power supply, with 24 V DC as its nominal operating voltage.
The Drager PEX 3000 uses a catalytic bead sensor based on the heat-tone measurement principle. Its sensor contains catalytically active beads on platinum coils (pellistors). When flammable gas reaches the sensor, the resulting reaction heat changes the electrical resistance of the platinum coils, producing a measurement signal proportional to the gas concentration.
The transmitter features a glass fibre reinforced polyester (GFRP) housing with IP66 protection. For calibration and maintenance, a two-digit 7-segment display and two operating keys are accessible inside the opened enclosure. The device also provides maintenance and fault signals through its 4–20 mA output arrangement.
Gulf Safety Supplies is a premier supplier of Safety Products in Dubai UAE. As a leading supplier, we pride ourselves on offering the best price for Drager 8318360 PEX 3000 Type XTR 0001 Fixed Gas Transmitter in Dubai UAE, Saudi Arabia KSA, Oman, Qatar, Bahrain, Kuwait, Iraq, Egypt, Congo, Ghana, Nigeria, Tanzania, and Uganda. We have stock available, contact us today and get huge discounts on Bulk order.
Features of Drager PEX 3000 Type XTR 0001 Fixed Gas Transmitter - 8318360
- Catalytic bead sensor technology: Uses Dräger catalytic bead sensor technology based on the heat-tone principle to detect compatible flammable gases and vapours in ambient air.
- Continuous flammable gas monitoring: Designed for continuous measurement of flammable gases and vapours below their lower explosive limit (LEL), helping to prevent explosive hazards.
- 100% LEL measuring variant: The XTR 0001 is the 100% LEL order configuration. Its technical product information specifies a measuring range of 0–99% LEL.
- 4–20 mA analog output: Converts measured gas concentrations into a standard 4–20 mA signal for connection to compatible gas detection controllers and monitoring systems.
- Fast sensor response: For methane at 25°C, Dräger specifies a t50 response time of 3–5 seconds and a t90 response time of 8–10 seconds for the XTR 0001.
- IP66 enclosure protection: Provides protection against dust ingress and powerful water jets when correctly installed.
- GFRP housing: Features a glass fibre reinforced polyester enclosure with a metallic inner coating.
- Internal calibration display: Includes an internal two-digit 7-segment display and two operating keys for menu-controlled calibration and maintenance.
- Maintenance and fault indication: Provides a 3.4 mA maintenance signal and a fault signal below 1.2 mA through its analog output.
Drager 8318360 PEX 3000 Type XTR 0001
Best Price Guaranteed – Available In-Stock – Door to Door Delivery to UAE, KSA, Oman & Qatar
Specifications of Drager PEX 3000 Type XTR 0001 - 8318360
| Specification | Details |
|---|---|
| Manufacturer | Drager |
| Product Family | PEX 3000 |
| Model | PEX 3000 Type XTR 0001 |
| Part Number | 8318360 |
| Product Type | Fixed Flammable Gas Transmitter |
| Housing Configuration | Medium-sized housing |
| Sensor Configuration | Sensor included |
| Measuring Principle | Catalytic Bead Sensor |
| Sensor Technology | Heat-tone principle (pellistor) |
| Target Gases | Flammable gases and vapours |
| Measuring Range | 0–99% LEL (technical product information) |
| Order Variant | 100% LEL |
| Output Signal | 4–20 mA |
| Maintenance Signal | 3.4 mA |
| Fault Signal | Less than 1.2 mA |
| Power Supply | 12–30 V DC |
| Nominal Supply Voltage | 24 V DC |
| Maximum Current Consumption | 110 mA at 24 V |
| Response Time (Methane at 25°C) | t50: 3–5 seconds; t90: 8–10 seconds |
| Display | Internal two-digit 7-segment display |
| Operating Keys | 2 |
| Housing Material | Glass Fibre Reinforced Polyester (GFRP) with metallic inner coating |
| Enclosure Protection | IP66 |
| Operating Temperature | -40°C to +65°C, subject to temperature class |
| Operating Pressure | 700–1,300 hPa |
| Operating Humidity | 5–95% relative humidity |
| Dimensions (W × H × D) | Approx. 110 × 145 × 55 mm |
| Weight | Approx. 600 g |
| Sensor Lifespan | More than 3 years on average |
| Cable | 3-core shielded measuring cable |
| Intrinsic Safety | No |
| Flameproof | No |
| Increased Safety | Yes |
| ATEX | Yes, subject to applicable certification |
| IECEx | No |
| SIL | SIL 1, subject to applicable certification and conditions |
| HART® Communication | No |
| Wireless Communication | No |
Drager PEX 3000 - 8318360 Supplier in Dubai UAE
Gulf Safety Supplies is leading supplier of Drager
Single Gas Detectors at Best Prices in Dubai UAE
Stock Available for X-am Series, Pac Series &
Fixed Gas Detectors
Additional Information
| Attribute | Details |
|---|---|
| Product Category | Fixed Gas Detection |
| Subcategory | Flammable Gas Detection |
| Product Type | Fixed Flammable Gas Transmitter |
| Sensor Technology | Catalytic Bead |
| Measurement Principle | Heat-tone principle |
| Measuring Range | 0–99% LEL (technical product information) |
| Order Variant | 100% LEL |
| Sensor Included | Yes |
| Continuous Monitoring | Yes |
| 4–20 mA Output | Yes |
| Maintenance Signal | 3.4 mA |
| Fault Signal | Below 1.2 mA |
| Internal Display | Two-digit 7-segment display |
| Calibration Controls | 2 internal operating keys |
| Housing Material | GFRP with metallic inner coating |
| IP66 Protection | Yes |
| Increased Safety | Yes |
| Intrinsic Safety | No |
| Flameproof | No |
| ATEX | Yes |
| IECEx | No |
| SIL 1 | Listed by Dräger |
| HART® Communication | No |
| Wireless Communication | No |
